How do you install a Nyloc nut?

Slide the socket onto the nylon lock nut and turn the handle of the ratchet clockwise to turn the nylon lock nut onto the fastener. You will feel some resistance from the nylon lock nut as you turn it onto the fastener. This is created by the nylon insert and is completely normal.

How do you screw a Nyloc nut?

Nyloc nuts should be threaded onto the bolt or stud and tightened by hand until resistance is felt. Continue tightening through this resistance with a spanner or socket until the nut seats firmly against the surface of the object that you are securing.

How many times can you use a Nyloc nut?

Nylock nuts are the most common and inexpensive self-locking aircraft nuts. These elastic insert nuts are inexpensive and almost infinitely reusable. Nylock nut tensile strength is rated at 125,000 psi with a 250°F temperature rating.

Can you torque a Nyloc nut?

Typically there are the “Nylock” or elastic stop nuts, and the “all-metal” lock nuts. The rule of thumb is to add the prevailing torque to the torque value when applying torque to a Nylock nut. This is because the prevailing torque doesn’t contribute to bolt tightening. It is just friction that needs to be overcome.

Do you need a washer with a Nylock nut?

RE: Lock washers with nylock type nuts? Split – spring type lock washers are useless, with or without nylock nut. Use nylock with flat washer.

How do you install self clinching fasteners?

Self-clinching fasteners install into a round hole which can be punched or drilled into ductile materials. Typically they are pressed into holes in sheet metal by applying a steady squeezing force.

What is self clinching nut?

A swage nut or self-clinching nut is a type of nut or threaded insert that is used on sheet metal. It permanently anchors itself to the sheet metal by swaging the surrounding material.

Can you torque Nyloc nuts?

The rule of thumb is to add the prevailing torque to the torque value when applying torque to a Nylock nut. This is because the prevailing torque doesn’t contribute to bolt tightening. It is just friction that needs to be overcome.

Who invented Nylock nuts?

Abbott Interfast began producing Nylon Insert Locknuts, also known as nyloc nuts, in 1964 as the first licensee under US Patent No. 2,450,694 for Elastic Stop Nut Corporation of America.

Does the nylon in a Nylock nut make it maintain torque?

Nylock adds a secondary retention to the nut. The primary is torque. If the material is a grade 5 nut as others have suggested then use correct torque for the material. The Nylock is to resist loosening from high vibration environment that could loosen a nut with only torque load.

What is a nyloc (nylon insert) nut?

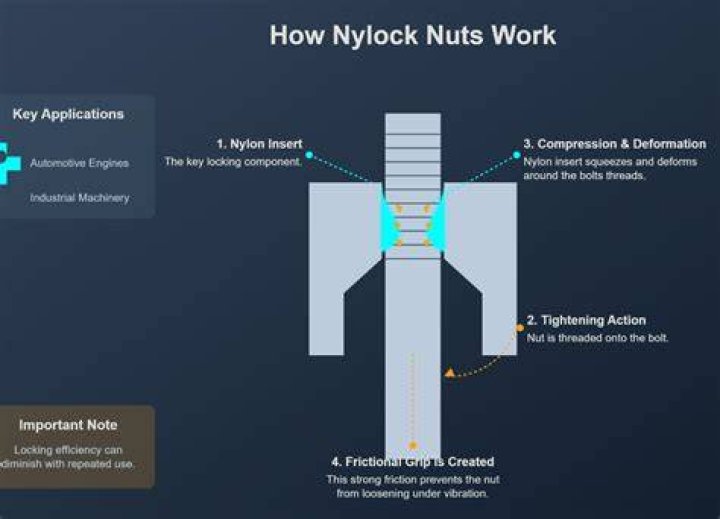

A Nyloc (nylon insert) Nut is a torque prevailing nut which uses a plastic/nylon insert located towards the top of the nut, reducing its inner diameter, which then deforms over the mating thread.

How do I install a nylon lock nut on a bolt?

Thread the nylon lock nut onto the bolt or threaded stud and turn the nut clockwise with your hand until it no longer turns. This will be the point that the nylon insert contacts the top thread of the fastener. Place the socket that matches the nylon lock nut onto the 3/8-inch drive ratchet. Slide the socket onto…

What temperature can nyloc nuts be used in?

They can be used in environments with relatively high temperatures where they can retain their locking ability up to 121°C. Available in a range of thread sizes, materials and finishes, with specials available to order. Din 985 Type T Nyloc (nylon insert) Nuts are available in Grade 8, 10 & 12:

Why are dry nylon insert lock nuts difficult to install?

These factors combined with cold temperatures decrease the ease of assembly. While some dry nylon insert lock nuts are simply difficult to install, others experience nylon rings extruding/pushing out (Fig 1), or chipping after installation (Fig 2).
