How do you fillet a face in Solidworks?

Click Fillet (Features toolbar) or Insert > Surface > Fillet/Round. In the PropertyManager, under Fillet Type, select Face fillet. Under Items To Fillet, set a Radius value. Select the first face to fillet in the graphics area for Face Set 1.

How do you create a face in Solidworks?

To sketch on model faces:

1. Select the planar model face on which you want to sketch.
2. Click a sketch tool on the Sketch toolbar, click Sketch. , or click Insert > Sketch .
3. To sketch on a different face, exit the current sketch, select the new face, and open a new sketch.

How do you fillet a 3D object in Solidworks?

To fillet multiple edges of a 3D solid using the Chain option:

1. Click Solids > Solid Editing > Fillet edges (or type FilletEdges).
2. Specify the Radius option.
3. Specify the radius of the fillet arc.
4. Specify the Chain option.
5. Specify an edge tangent to an existing fillet on a 3D solid.
6. Press Enter.

Is face a fillet type in Solidworks?

The face fillet is the third fillet type choice and is defined by two faces. It has the same options for fillet parameters that a regular edge fillet has, but it is capable of so much more. We use it to add a round between faces where there is an existing geometry that we want to be consumed by the fillet.

Where is fillet in Solidworks?

To create a fillet: Click Fillet (Features toolbar) or Insert > Features > Fillet/Round.

How do you fillet two surfaces in Solidworks?

To create a face fillet between surfaces:

1. Create two surfaces (the surfaces need not be adjacent).
2. Click Fillet (Features toolbar) or Insert > Surface > Fillet/Round.
3. In the PropertyManager, under Fillet Type, select Face fillet.
4. Under Items To Fillet, set a Radius value.

How do I add a fillet in SolidWorks?

To create fillets:

1. Click Fillet on the Features toolbar, or click Insert, Features, Fillet/Round.
2. Set the PropertyManager options. For constant radius fillets only, you can use the FilletXpert to add or modify fillets and to manage fillet corners.
3. Click OK .

How do you cut a face in SolidWorks?

Click Cut With Surface on the Features toolbar, or click Insert > Cut > With Surface. In the PropertyManager, under Surface Cut Parameters, select the surface or plane to use to cut the solid bodies. Examine the preview. If necessary, click Flip cut to reverse the direction of the cut.

What are the four types of fillets?

Circular, conic Rho, Conic Radius and Curvature Continuous are all available choices. In fillets, edges don’t always have to be touching to create a fillet. A way of going about this is to click on Face Fillets and select two faces. Another option found in fillets is a Full Round Fillet.

How do you make a fillet in SolidWorks?

Select an edge on the part or a projected split line on a face as a boundary that determines the face fillet shape. The radius of the fillet is driven by the distance between the hold line and the edge to fillet. Sets the profile type to fillet.

How to fillet in AutoCAD?

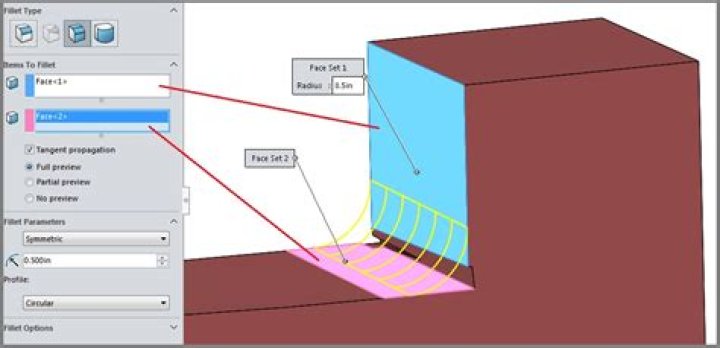

Items To Fillet Face Set 1 Select the first face or set of faces in Face Set 2 Select the faces in the graphics area to Show selection toolbar Shows/hides selection accelerator toolba Tangent propagation Extends the fillet to all faces that are Full preview Displays a fillet preview of all edges.

How do I create a face fillet in Photoshop?

Creates a fillet with a constant width. Resolves an ambiguous selection when it may not be clear where the face blend should occur. Click in Help Point Vertex, then click a vertex on the side where you want the face fillet. A fillet is created at the location closer to the Help point.

Why does the face fillet need to be smoothly connected?

If you select more than one face for either Face Set 1 or Face Set 2, each set of faces must be smoothly connected for the face fillet to properly propagate to all faces. Extends the fillet to all faces that are tangent to the selected face. Example: Tangent Propagation
