How do you convert mW to dBm?
Carter Sullivan How do you convert mW to dBm?
Calculation Results
- dBm = (10Log10(milliWatts))
- 1 mW = 0 dBm.
What is 1mw in dBm?
0 dBm
mW to dBm conversion table
| Power (mW) | Power (dBm) |
|---|---|
| 1 mW | 0 dBm |
| 2 mW | 3.0103 dBm |
| 3 mW | 4.7712 dBm |
| 4 mW | 6.0206 dBm |
How many mW is dBm?
dBm or dBmW (decibel-milliwatts) is a unit of level used to indicate that a power level is expressed in decibels (dB) with reference to one milliwatt (mW)….Unit conversions.
| Power level | Power | Notes |
|---|---|---|
| 2 dBm | 1.6 mW | |
| 1 dBm | 1.3 mW | |
| 0 dBm | 1.0 mW = 1000 μW | Bluetooth standard (Class 3) radio, 1 m range |
| −1 dBm | 794 μW |
How do you convert mW to dB?
Decibels are used to represent the ratio of two quantities of power: db = 10 log P1/P0 . In the case of dbm the reference power P0 is 1 milliwatt : dbm = 10 log P1/1mw. Inverting this equation gives the power in terms of the reference power: P1= P010db/10. In the case of dbm the equation is P1= 1mw·10dbm/10.
How do you convert 100 mw to DBM?
Convert 100 mW to dBm: P (dBm) = 10 · log10 (100mW / 1mW) = 20 dBm W to dBW Conversion The decibel-watt or dBW isthe power ratio in decibels (dB) of the measured power referenced to one Watt (W).:
How many decibels (DBM) in 1MW?

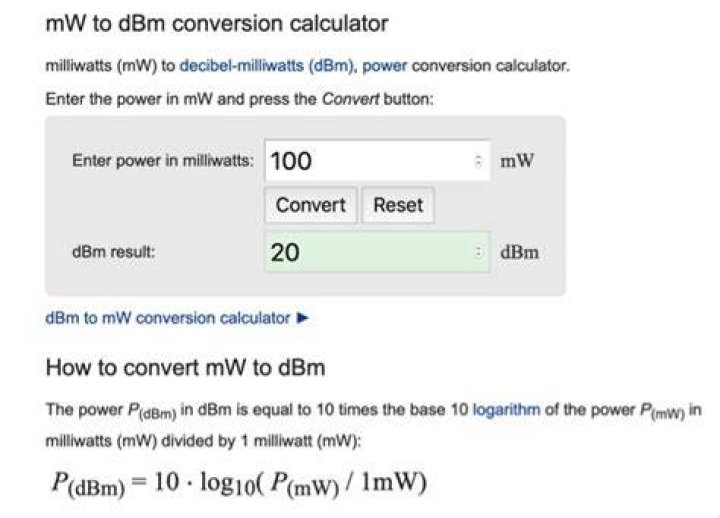

mW to dBm conversion calculator that is used to convert the power in milliwatts (mW) to decibel-milliwatts (dBm). According to this converter 1mW = 0dBm.
What is the power P(DBM) in dBm equal to?
The power P (dBm) in dBm is equal to 10 times the base 10 logarithm of the power P (mW) in milliwatts (mW) divided by 1 milliwatt (mW): Example.
What is the formula for DBM?
dBm Definition: dBm is the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). The formula bellow can be translated as: “the power P (dBm) in dBm is equal to 10 times the base 10 logarithm of the power P (mW) in milliwatts (mW) divided by 1 milliwatt (mW)”:
