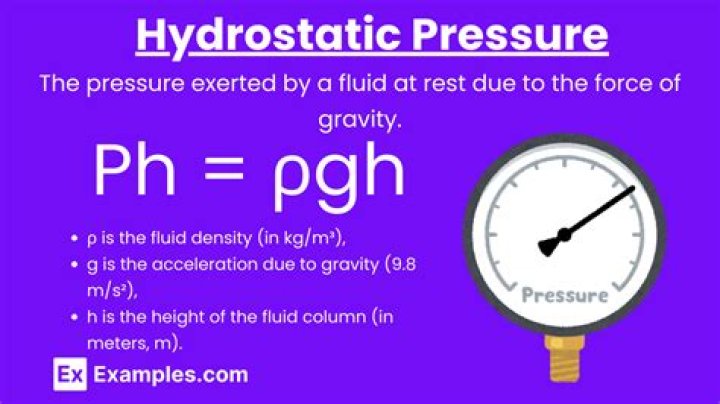

How do you calculate hydrostatic?

The pressure in a liquid at a given depth is called the hydrostatic pressure. This can be calculated using the hydrostatic equation: P = rho * g * d, where P is the pressure, rho is the density of the liquid, g is gravity (9.8 m/s^2) and d is the depth (or height) of the liquid.

How do you calculate mud weight?

Your kill weight mud (KWM) is the mud weight that will allow you to keep control of your well during times where a kick may be occurring. Here is the equation to calculate your kill weight mud: KWM = Mud weight (ppg) + (Shut-in drill pipe pressure (psi) / 0.052 / Well TVD (ft)) KWM = MW + (SIDPP/0.052/TVD)

How do you calculate mud hydrostatic pressure?

Hydrostatic pressure is calculated from mud weight and true vertical depth as follows: Hydrostatic pressure, psi = 0.052 x Mud Weight, lbm/gal x True Vertical Depth, ft. (To convert to SI units, 1.0 psi = 6.9 kPa.)

How do you calculate formation pressure?

Kill Mud weight (KMW) But when the formation pressure can be determined from data sources such as bottom hole pressure, then KWM can be calculated as follows: KWM = FP / (0.052 × TVD) where FP = Formation pressure.

What is Rho * G * H?

P = r * g * h where. r (rho) is the density of the fluid, g is the acceleration of gravity. h is the height of the fluid above the object.

What is the formula of mud?

MUD | C11H24OS | ChemSpider.

How do you calculate mud gradient?

Mud gradient (psi/ft) = mud weight in ppg x 0.052 Converting 10 ppg to psi/ft =0.052×10=0.52 psi/ft.

What is wait and weight method?

Wait and Weight Well Control Method or someone calls Engineer’s Method is a method to control well with one circulation. Kill weight mud is displaced into drill string and kick (wellbore influx) is removed while displacing a wellbore.

¿Qué es la hidrostática?

El principio fundamental de la hidrostática establece que la presiónen un punto del interior de un fluido (presión hidrostática) es directamente proporcional a su densidad, a la profundidad que se encuentre dicho punto y a la gravedad del sitio en el que se encuentre el fluido. P=d·g·h.

¿Cuál es la presión hidrostatica?

Presion Hidrostatica Presión de líquidos en reposo Es la presión que soporta un punto sumergido en un líquido en reposo Ejemplo: Un cuerpo está sumergido, en mercurio, a 0,60 cm de profundidad. La densidad del Hg es 13,6 g/cm3, ¿Cuál es la presión que soporta el cuerpo?
