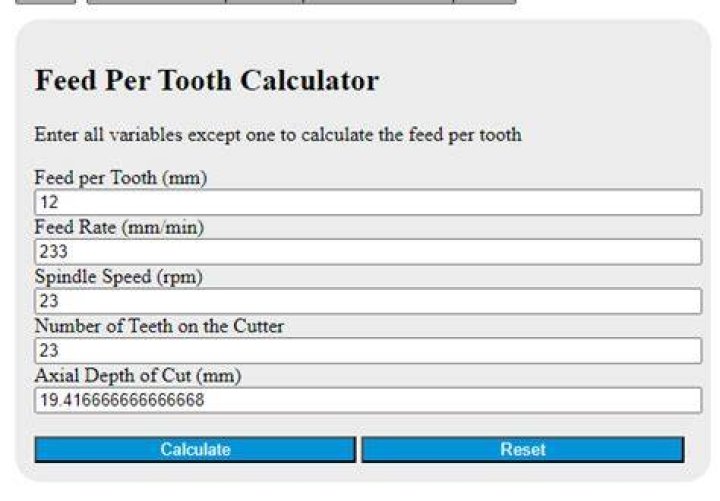

How do you calculate feed per tooth in mm?

What is the feed per tooth when the main axis spindle speed is 500min-1, number of insert is 10, and table feed is 500mm/min? Substitute the above figures into the formula. fz=Vf÷(z×n)=500÷(10×500)=0.1mm/t. The answer is 0.1mm/t.

How do you calculate feed rate?

The equation for the feed rate is: feed Rate = RPM * chip load * number of teeth.

How do you calculate feed rate in mm rev?

What is the feed per revolution when main axis spindle speed is 500min-1 and cutting length per minute is 120mm/min? Substitute n=500, I=120 into the formula. The answer is 0.24mm/rev.

What is feed rate per tooth?

Feed per tooth (fz) = 0.2 mm/tooth. Number of teeth (z) = 8. Spindle speed (n) = 600 min-1. In this case, the table feed rate is 960 mm/min.

What is the unit of feed rate?

Feed rate. Feed rate is the velocity at which the cutter is fed, that is, advanced against the workpiece. It is expressed in units of distance per revolution for turning and boring (typically inches per revolution [ipr] or millimeters per revolution).

What is feed rate measured in?

How do you calculate fish feed?

Feed ration per pond= average fish size (weight) x feed rate (%) x total number of fish in the pond. E.g. If an African catfish of 180 grams requires a ration of 2.5% of its body weight, how much food should it be given per day? = 4.5 grams feed per fish per day.

How do you calculate lathe feed rate?

Using the equation, rpm = sfm ÷ diameter × 3.82 = 350 ÷ 1.0 × 3.82 = 1,337, the feed rate = rpm × no. of flutes × chip load = 1,337 × 4 × 0.005 = 26.74 ipm.

How do you calculate speed and feed?

Milling Formulas

1. Speed (RPM) = (SFM x 3.82) / D.
2. Feed (IPM) = RPM x FPT x Z.
3. SFM (Surface Feet per Minute) = (RPM x D) / 3.82.
4. IPT (Inches per Tooth) = (IPM / RPM) / Z.
5. MRR (Cubic Inches per Minute) = IPM * WOC * DOC.
6. AFPT (@ less than 1/2 dia. WOC) = IPM x sqroot of (D / WOC)
7. HP (Horsepower Consumption) = MRR x mf.

How do I find my feed teeth?

Feed is calculated by the number of cutting teeth in the end mill, multiplied by feed per tooth, multiplied by the revolutions per minute.

How to find rate formula?

Method 1 of 2: Calculating Interest Rates Plug your numbers into the interest formula I P T = R {\\displaystyle {\\frac {I} {PT}}=R} to get your rate. Convert the interest rate to a percentage by multiplying it by 100. A decimal like .34 doesn’t mean much when figuring out your interest. Refer to your most recent statement to fill in the interest equation.

What is feed rate?

Feed rate is the velocity at which the cutter is fed, that is, advanced against the workpiece. It is expressed in units of distance per revolution for turning and boring (typically inches per revolution [ipr] or millimeters per revolution).

How do you calculate cutting speed?

Check the item you want to calculate, input values in the two boxes, and then press the Calculate button. What is the cutting speed when main axis spindle speed is 700min-1 and external diameter is Ø50? Substitute π=3.14, Dm=50, n=700 into the formula.

What is CNC feed rate?

Feeds and Speeds. Most spindles (the term for the router attached to your cnc router) will go from about 7,000rpm to 18,000rpm. This speed is termed ‘spindle speed’ and is directly related to the feed rate or surface speed, which most machines are capable of doing up to about 200ipm.
