How do you calculate control limits for XmR charts?

Here’s the formula to use to calculate the lower Natural Process Limit for your XmR Chart: “=C3-E3*2.66”, assuming that your Average Moving Range value is in column E. Likewise for the Natural Process Limit, the formula is: “=C3+E3*2.66”.

How do you calculate control charts?

Control limits are calculated by:

1. Estimating the standard deviation, σ, of the sample data.
2. Multiplying that number by three.
3. Adding (3 x σ to the average) for the UCL and subtracting (3 x σ from the average) for the LCL.

How do I make an XmR chart?

And here’s how to build a basic XmR chart for your KPIs:

1. STEP 1: Gather between 5 and 30 historic values of your KPI.
2. STEP 2: Arrange your KPI values into a line chart.
3. STEP 3: Calculate the Central Line, the baseline level of performance.
4. STEP 4: Calculate the Natural Process Limits, range of normal variation.

What is XmR control chart?

An individuals and moving range (X-MR) chart is a pair of control charts for processes with a subgroup size of one. Used to determine if a process is stable and predictable, it creates a picture of how the system changes over time. The moving range (MR) chart shows variability between one data point and the next.

When should I use XmR?

Use XmR Control Charts When: When you have continuous data. When you have subgroups of size = 1. You use the XmR chart only when logistical reasons prevent you from having larger subgroups or when there is no reasonable basis for rational subgroups.

How do you create an individual control chart?

The steps in constructing the individuals control chart are given below.

1. Gather the data. a. Select the frequency with which the data will be collected.
2. Plot the data. a.
3. Calculate the overall process averages and the control limits. a.
4. Interpret both charts for statistical control. a.

How do you calculate upper and lower control limits?

Find the average and standard deviation of the sample. Add three times the standard deviation to the average to get the upper control limit. Subtract three times the standard deviation from the average to get the lower control limit.

How do you calculate upper control limit?

What is an XMR chart?

How do you calculate UCL and LCL for IMR chart?

Calculate the Upper & Lower Control Limits.

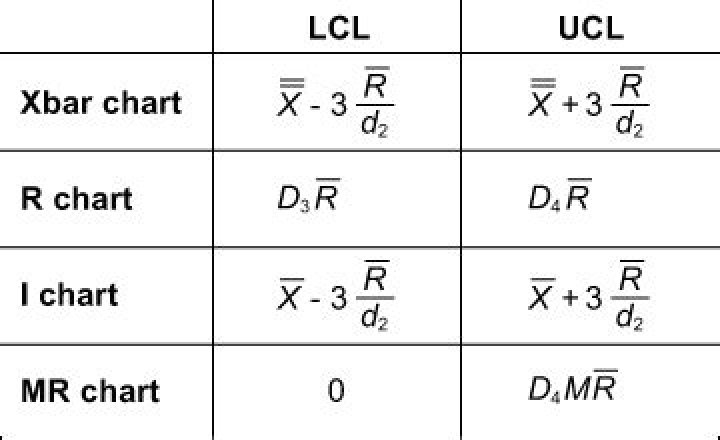

1. UCL = Sample mean + 3* MR mean / d2.
2. LCL = Sample mean – 3* MR mean / d2.
3. d comes from a chart – you can find this in most reference books like this one.
4. The 3 refers to 3 standard deviations.
5. UCL in our example would =4.5 + (3 * 2.333 / d2)

An XmR chart (aka Shewhart’s Control Chart) is a chart where the control limits are calculated from the moving average range. Use XmR Control Charts When: When you have continuous data.

How do you calculate XMR control limits?

Calculating XmR Control Limits 1 The process mean should be 0.75″ (hopefully). 2 The upper control limit will be 0.75 + 3 3 (0.125/1.128) 4 the lower control limit will be 0.75 – 3 5 (0.125/1.128) More

What is the control limit on the Mr chart?

The lower chart displays the Moving Range (mR-Chart) with its Average and Upper Control Limit. There is no lower control limit as the value of the difference between consecutive observations is recorded as an Absolute Value (positive number).

What is a significant correlation in XMR trend?

The XmR Trend then calculates the linear correlation coefficient (Ryx) for the degrees of freedom (df = k-2). If Ryx is greater than the probability for this degree of freedom, you have a ” significant correlation ” between x and y.
