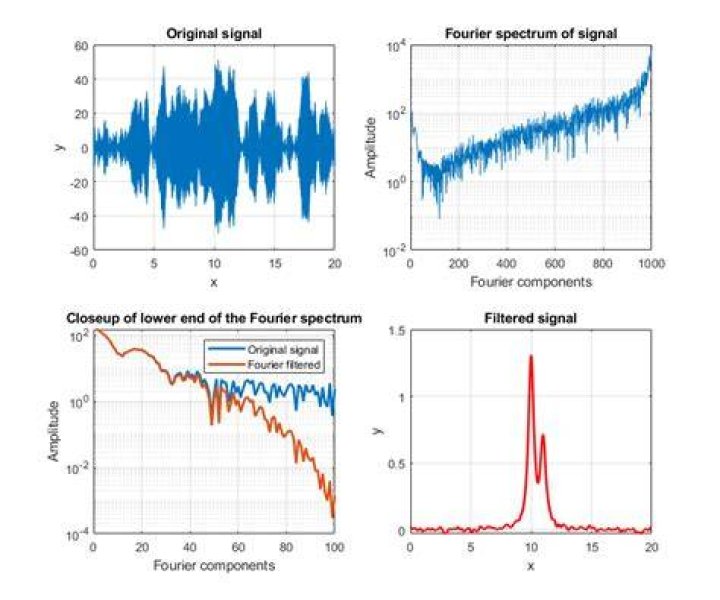

How do you apply a filter to a signal in Matlab?

Lowpass FIR Filter with Filter Designer

1. Start the app by entering filterDesigner at the command line.
2. Set the Response Type to Lowpass.
3. Set the Design Method to FIR and select the Window method.
4. Under Filter Order, select Specify order.
5. Under Frequency Specifications, set Units to Hz, Fs to 1000, and Fc to 150.

How do you apply a Butterworth filter to a signal in Matlab?

Use the Butterworth filter to lowpass-filter a noisy sine wave. t = transpose(linspace(0,pi,10000)); x = sin(t) + 0.03*randn(numel(t),1); Filter the noisy sine wave using the Butterworth filter. Plot the filtered signal.

What is ideal low pass filter in image processing?

In the field of Image Processing, Ideal Lowpass Filter (ILPF) is used for image smoothing in the frequency domain. It removes high-frequency noise from a digital image and preserves low-frequency components.

How do you filter data in Matlab?

In MATLAB®, the filter function filters a vector of data x according to the following difference equation, which describes a tapped delay-line filter. In this equation, a and b are vectors of coefficients of the filter, Na is the feedback filter order, and Nb is the feedforward filter order.

Is Butterworth a low pass filter?

The low pass Butterworth filter is an active Low pass filter as it consists of the op-amp. This op-amp operates on non-inverting mode. Hence, the gain of the filter will decide by the resistor R1 and RF. And the cutoff frequency decides by R and C.

How do I calculate the transition width of a lowpass filter?

Every filter used by lowpass has a passband ripple of 0.1 dB. When you specify a value, s, for ‘Steepness’, the function computes the transition width as W = (1 – s) × (fNyquist – fpass). When ‘Steepness’ is equal to 0.5, the transition width is 50% of (fNyquist – fpass).

How to find the time constant of a low pass filter?

2 Answers 2 ActiveOldestVotes 34 Look at the filterfunction. If you just need a 1-pole low-pass filter, it’s xfilt = filter(a, [1 a-1], x); where a = T/τ, T = the time between samples, and τ (tau) is the filter time constant.

What does y = lowpass(X) and FPASS(FPASS) mean?

y = lowpass (x,fpass,fs) specifies that x has been sampled at a rate of fs hertz. fpass is the passband frequency of the filter in hertz. y = lowpass (xt,fpass) lowpass-filters the data in timetable xt using a filter with a passband frequency of fpass hertz.

How to design a high pass filter?

Here’s the corresponding high-pass filter: xfilt = filter([1-a a-1],[1 a-1], x); If you need to design a filter, and have a license for the Signal Processing Toolbox, there’s a bunch of functions, look at fvtooland fdatool. Share Improve this answer Follow edited Mar 26 ’19 at 16:39 nbro
