How do you anneal copper?
Robert Harper How do you anneal copper?

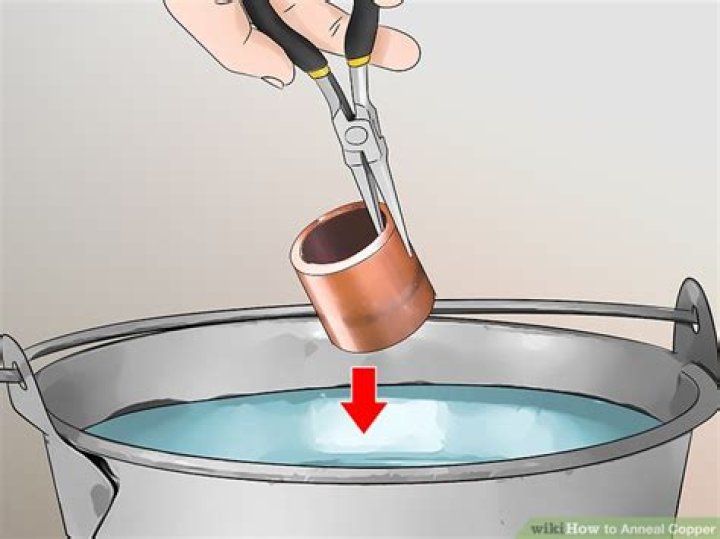

You can anneal any grade and thickness of copper as long as you have a flame that can transmit enough heat to the metal. The most straightforward way to anneal copper is by heating it with an oxygen acetylene torch and rapidly cooling it in water.
What is seamless copper?
Seamless Copper Pipe It may be manufactured from any of five (5) copper alloys (C10200, C10300, C10800, C12000, C12200) that all conform to the chemical composition requirements of alloys containing a minimum of 99.9% Copper (Cu) and a maximum of 0.04% Phosphorous (P).
What is DHP copper used for?
Phosphorus-Deoxidized copper tubes – C12200 – are extensively used in sugar refineries for condensers and evaporators. Deoxidized copper is the standard material for transferring heat from steam to water or air because of their excellent resistance to corrosion by fresh water and their high thermal conductivities.
Can copper be tempered?
The copper most commonly used for sheet and strip applications complies with ASTM B370. It consists of 99.9 percent copper, and is available in six tempers designated by ASTM B370 as: 060 (soft), H00 (cold rolled), H01 (cold rolled, high yield), H02 (half hard), H03 (three quarter hard), and H04 (hard).
Is copper wire pure copper?
Generally it is pure copper. There’re some copper alloys used, for example to increase the physical strength of cables, but these are rare. Pure copper is best for conductivity, especially in electrical power wiring.
What is ASTM b68?
1.1 This specification establishes the requirements for bright annealed seamless copper tube suitable for use in refrigeration, oil lines, gasoline lines, and so forth, where tube with an interior surface essentially free from scale and dirt is required.
What is tough pitch copper?
C11000 Electrolytic Tough Pitch, known as ETP Copper or tough pitch copper, has long been the standard type of commercial wrought copper used in the production of sheet, plate, square bar, bus bar, round rod, strip and wire. ETP Copper is the most common and widely used copper because of its conductivity.
What is h58 temper?
Annealed to temper,1/2 hard. Cold-Worked Tempers. H-series tempers are designed to produce materials with specific quantities of stress-relieved, cold work and cold-worked (drawn) tempers, HR-tempers, order-strengthening tempers and HT-Tempers by cold working. H00. 1/8 hard.
How do you harden copper without hammering?
Place your copper wire onto your fireproof ceramic soldering surface. Heat up your soldering torch to a medium flame and apply it to the wire for a few moments to anneal the metal. This will make the copper easier to bend, but will also increase its hardening capacity.
What is the difference between H58 and H80 tempering?
Drawn – General Purpose (H58)Temper is used for general purpose tube only, usually where there is no real requirement for high strength or hardness on the one hand or for bending qualities on the other. Hard Drawn (H80)Temper is used only where there is need for a tube as hard or as strong as is commercially feasible for the size in question.
What are the uses of DHP copper CDA 122?
DHP Copper CDA 122. Light Drawn – Bending (H55)Temper is used only where a tube of some stiffness, but yet capable of readily being bent (or otherwise moderately cold worked) is needed. Typical Uses: Household: air conditioners, gas lines, heater lines, oil burner tubes, plumbing tube, refrigerators, Industrial: brewery tubes, condenser,…
What is H55 temperature used for?
Light Drawn – Bending (H55)Temper is used only where a tube of some stiffness, but yet capable of readily being bent (or otherwise moderately cold worked) is needed.
What is the chemical composition of a copper tube?
All three types of tube are manufactured from copper alloy C12200 having a chemical composition of a minimum of 99.9% Copper (Cu) and Silver (Ag) combined and a maximum allowable range of Phosphorous (P) of 0.015 % – 0.040 %.
