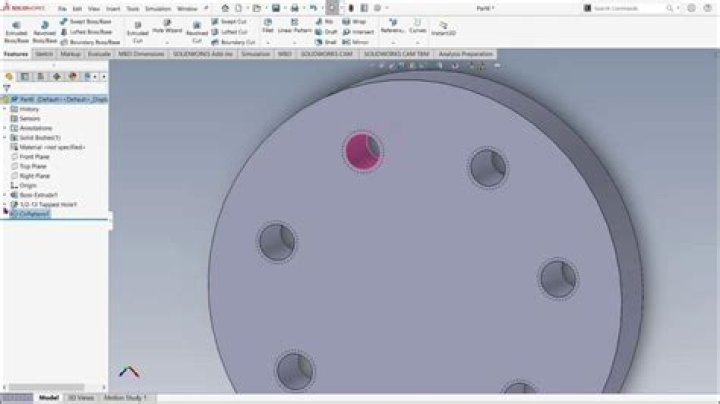

How do you add a bolt circle in SolidWorks?

Drafting. First, create center marks by selecting the center mark creator from the Annotations tab. Select the bolt circle center mark, then select all holes in the bolt circle in a single view to create a center mark and bolt circle radius construction line.

How do you center a circle in Solidworks?

To create a centerline:

1. Click Centerline (Sketch toolbar) or click Tools > Sketch Entities > Centerline.
2. Click to start the centerline.
3. Drag, or move the pointer and click, to set the end of the centerline.

How do you make a threaded hole in Solidworks?

Make sure the “With Thread Callout” option is checked otherwise the tap program in SOLIDWORKS CAM will not function. Once the hole specifications are selected, choose the “Positions” tab at the top of the Hole Wizard property manager. Choose a face to place the tapped hole on. Click to place a hole or multiple holes.

How do you make a construction circle in Solidworks?

In an open sketch, select one or more sketch entities and do one of the following:

1. Select For construction in the PropertyManager.
2. Click Construction Geometry on the Sketch toolbar.
3. Click Tools > Sketch Tools > Construction Geometry.
4. Right-click a sketch entity and select Construction Geometry (drawings only).

What is a centerline in Solidworks?

Centerlines are annotations that mark circle centers and describe the geometry size on drawings. You can insert centerlines into drawing views automatically or manually. The SOLIDWORKS software avoids duplicate centerlines. If you dimension to a centerline, the extension lines are shortened automatically.

How do you make a circular pattern in Solidworks?

To create circular sketch patterns: In an open sketch, click Circular Sketch Pattern (Sketch toolbar) or Tools > Sketch Tools > Circular Pattern. In the PropertyManager, under Entities to Pattern, select the sketch entities to pattern .

How to draw circular drawing in SolidWorks?

The Solidworks circle is another important sketching tools which enable to create the circular drawing on the graphics area. You can access the circle tools from the Sketch tab of command manager. There are two circle tools are available and they are “Center circle” and “Perimeter circle”.

How to draw a bolt in AutoCAD?

How to draw a bolt. Sketches a Circle. Make a circle by selecting the Circle on the sketch toolbar. Place a circle right in the middle of sketch polygons. This circle is in a hole the size of the nut. Determine the size of the diameter at 10.1mm by choosing smart dimension sketch and then click the circle. Add relations.

How to make a chamfered bolt in SolidWorks?

Now we have the basic body of the bolt. Under features>>fillet arrow>>Chamfer. Select the circular edge of the bolt. Change chamfer settings to 1mm distance and 45degree. Now we have the chamfered body. Select this face and sketch. Under Sketch Tab choose convert entities. Select this edge and then click OK. Again click OK to exit convert entities.

How to use Circle property manager in SolidWorks?

You can access the circle tools from the Sketch tab of command manager. There are two circle tools are available and they are “Center circle” and “Perimeter circle”. In this SolidWorks Tutorial-4, you are going to see how to draw center and perimeter circle in the sketch area with detailed explanation of circle property manager menu.
