How do I open my Dell Inspiron n5010?

Lift up the left side of the locking tab. It will open up at a 90-degree angle, then pull out the keyboard cable and remove the keyboard. Remove five screws securing the palm rest. Disconnect the power button cable, status light cable and touchpad cable from the motherboard.

Is Dell Inspiron n5010 good?

It’s a low score for a 15in laptop with a $1500 price tag — even the Samsung R580 recorded a quicker score of 7412 in the same test with a GeForce GT 330M graphics adapter. Nevertheless, it’s more than enough graphics performance for HD video processing and it will even be able to run some older games.

What generation is Dell Inspiron N5010?

Dell Inspiron 15R N5010 Laptop (Core i5 4th Gen/4 GB/500 GB/Windows 7/1)

How much RAM does a Dell Inspiron N5010 have?

You can upgrade your Dell Inspiron 15R (N5010) Laptop to up to a maximum memory capacity of 8GB Memory.

How much RAM can a Dell Inspiron N5010 (Inspiron 15R) support?

Dell Inspiron N5010 (Inspiron 15R) can support up to 8GB RAM. You can install up to 4GB RAM module into each slot. Memory type used: PC3-10666 DDR3-1333 204pin SDRAM SODIMM. STEP 3.

How do you remove the keyboard from a Dell Inspiron laptop?

Turn the keyboard upside down. Place it on the palm rest. Now you can access the cable connector. Lift up the left side of the locking tab. It will open up at a 90-degree angle, then pull out the keyboard cable and remove the keyboard. Remove five screws securing the palm rest.

How do I remove the DVD drive from a Dell laptop?

Make sure turned off your laptop. Unlock and remove the battery. Remove all screws from the bottom case. Lift up and remove the cover. Remove two screws securing the DVD drive and keyboard. Separate the clips. Remove the RAM. Pull out the DVD drive. There are four spring-loaded latches securing the keyboard on the top.

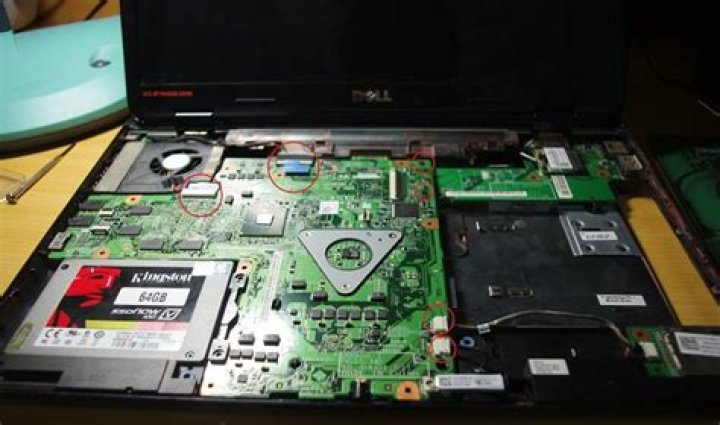

How do I clean the cooling fan on a Dell laptop?

Pry up and remove the palm rest. Remove two screws securing the motherboard. Disconnect four cables from the motherboard and remove the motherboard. Remove the screws securing the heat sink and disconnect the cooling fan cable. You can clean up the cooling fan.
