How do I access Simulink library in MATLAB?

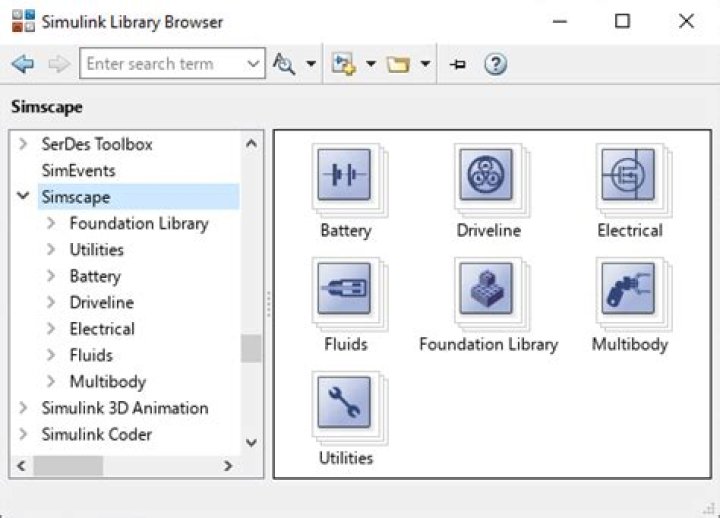

To view the block libraries for the products you have installed, type simulink at the MATLAB® prompt (or click the Simulink® button on the MATLAB toolbar). The Simulink Library Browser appears. The left pane displays the installed products, each of which has its own library of blocks.

How do I add library to library browser Simulink?

Add Library to the Library Browser

1. From the Simulink start page, select Blank Library and click Create Library.
2. Add a Gain block to the library.
3. In the MATLAB® Command Window, enter this command to set the EnableLBRepository library property to ‘on’ .
4. Save the library in a folder on the MATLAB path.

Where is library browser in MATLAB?

Open the Library Browser In the Simulink Toolstrip, on the Simulation tab, click Library Browser. You must have a Simulink model, library, or subsystem open to see the Simulink Toolstrip. In the MATLAB® Command Window, enter slLibraryBrowser .

How do I open Simulink library browser in MATLAB 2017?

simulink function opens Simulink Start Page

1. To open the Library Browser, use slLibraryBrowser .
2. To only load the Simulink block library, use this command. load_system simulink.

What is Simulink library?

A library is a collection of blocks which can be used by other Simulink models. When a block is updated in the library, all the corresponding blocks in all referenced models will be updated as well.

How do I find my MATLAB library?

To display information about library functions in the MATLAB® Command Window, use the libfunctions command. To view function signatures, use the -full switch.

What is library function in MATLAB?

A shared library is a collection of functions dynamically loaded by an application at run time. This MATLAB interface supports libraries containing functions defined in C header files. To call functions in C++ libraries, see the interface described in C++ Libraries in MATLAB.

Where is the Simulink library browser?

To display the Library Browser, click the Library Browser button in the toolbar of the MATLAB desktop or Simulink model window or enter simulink at the MATLAB command line. Note The Library Browser is available only on Microsoft Windows platforms. The Library Browser contains three panes.

What is Simulink library in MATLAB & what are its applications?

Simulink is a simulation and model-based design environment for dynamic and embedded systems, integrated with MATLAB. Simulink, also developed by MathWorks, is a data flow graphical programming language tool for modelling, simulating and analyzing multi-domain dynamic systems.

Is Simulink necessary for MATLAB?

Simulink Coder is not needed for deploying models to hardware such as Arduino or Raspberry Pi. I would say that the three toolboxes I use most often are Symbolic, Image Processing, and Optimization.

What is a MATLAB library?

A block library is a collection of blocks that you can use in a Simulink® model. You can create instances of blocks from built-in Simulink libraries, and you can make custom libraries for instances of blocks that you create. You can access the built-in libraries from the Simulink Library Browser.

How to open the Simulink library browser in MATLAB?

To open the Simulink Library Browser, you can use any one of the option discussed below:· By clicking the Simulink Library button, from the MATLAB default window as shown below By typing Simulink on the command window. Using any one of the above-mentioned options, Simulink library browser window will pop up as shown below

How to create sine wave model in Simulink library browser?

Once Simulink Library Browser window is opened, click on the New Model icon , from the toolbar of Simulink Library Browser. A New Model window will appear on the screen as shown below: Now click on Simulink appear on Simulink Library Browser. On clicking Sources, a set of blocks will appear. Now drag and drop the Sine Wave to the model window.

How do I add a library to my Simulink library?

Add Library to the Library Browser 1 From the Simulink start page, select Blank Library and click Create Library. 2 Add a Gain block to the library. 3 In the MATLAB ® Command Window, enter this command to set the EnableLBRepository library property to ‘on’. 4 Save the library in a folder on the MATLAB path.

How do I link a library to a sublibrary in MATLAB?

To link it to a sublibrary, in the My Sublibrary properties, set the OpenFcn callback to mylib2. At the MATLAB ® command prompt, enter this command to enable the model property EnableLBRepository . Your library can appear in the browser only if this property is on when you save your library.
