Can you split XLR?

XLR splitters work by splitting and sending one audio signal into two or more destinations. In its simplest form, two or more XLR connectors are connected in parallel to a single XLR connector. This means multiple XLR connectors share the same audio signal from one source.

Are all XLR cables male to female?

XLR connectors are available in male and female versions in both cable and chassis mounting designs, a total of four styles. This is slightly unusual as many other connector designs omit one of the styles (typically a chassis mounting male connector).

Can you split phantom power?

1.) Plug an XLR splitter cable to the mic, plug one end to the mixer with phantom power on, the other end to the phantom power box to the PC. 2.) Run the mic to the phantom power box, then split from there to the mixer (phantom power off) and to the PC.

Can XLR be mono?

XLR cables are primarily designed to carry a balanced mono signal. These cables are designed to transmit one independent audio signal, which is duplicated in opposite polarity. Due to this, balanced signals are able to reject sound interference better than unbalanced signals.

How many times can you split XLR?

Microphones can usually be split to up to three, and in some cases even four, destinations without the use of electronics. The number of splits that can be accomplished depends on the application, impedances present in the system, length of the cables and the quality of the components used in the splitter.

Can you split balanced outputs?

You can split an audio output, balanced or not, to feed multiple inputs, as long as the resulting load impedance (from the parallel input impedances) is within the signal source’s capability. Each input will receive the same voltage.

Can you connect two XLR cables together?

Joining multiple XLR cables (daisy-chaining) is possible. It provides a solution to not having long enough XLR cables to reach a required distance, from a microphone to a sound source, or another device. Daisy-chaining XLR cables shouldn’t have too much of an impact on sound quality on distances less than 50 meters.

How do you split a XLR signal?

Starts here5:1151 – How To: Splitting, Balancing & Isolating Line Level Audio signals.YouTube

Can you split 2 mics into input?

To connect two microphones to a single camera, you’ll need a cable that will combine two audio outputs into a single input. The RØDE SC11 is perfect. This is a high-quality TRS Y-splitter cable for connecting two mono 3.5mm outputs to a single stereo 3.5mm input, like the one on your camera.

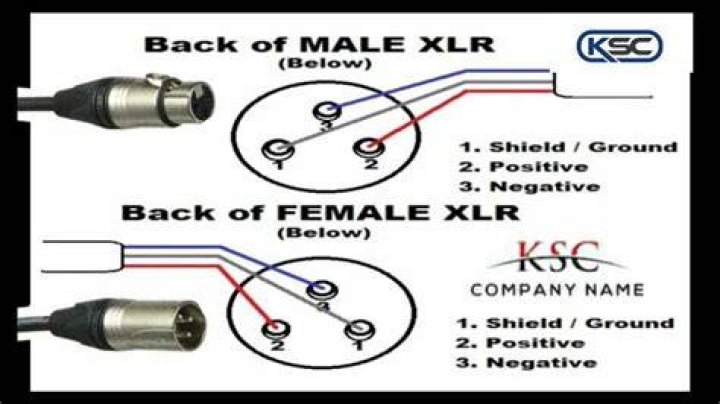

How do you wire a female XLR?

Starts here13:57How to Solder XLR Connections to make a new XLR cable – YouTubeYouTube
