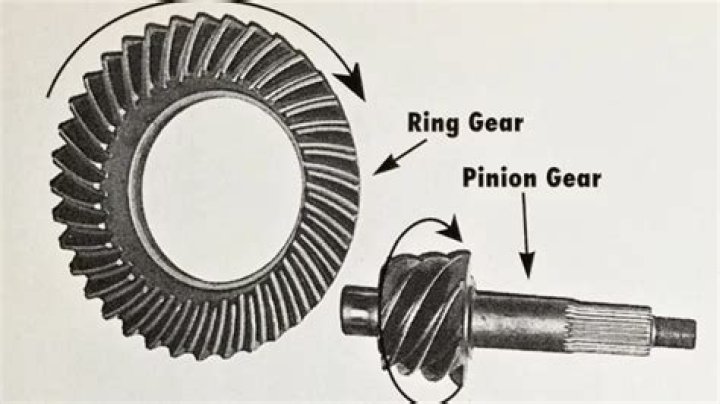

Can you mix ring and pinion gears?

It should be fine as long as the ring gear and pinion gear have the same tooth count. The ratio is a mathematical calculation that dictates only a certain number of ratios are possible. In other words, it would be impossible for the gear ratio to be slightly different if the tooth count was the same.

Can I just replace the ring gear?

Yes. Ring and Pinion gears come in matched sets and must be replaced at the same time.

How much does it cost to replace a pinion gear?

Pinion Seal Replacement Cost – RepairPal Estimate. Labor costs are estimated between $170 and $214 while parts are priced between $60 and $62. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.

Should I replace the ring and pinion?

Ring and Pinion gear sets and bearings that have just started to make noise do not necessarily require immediate attention, but they aren’t going to get better without replacement. Noisy bearings and gear sets will continue to fail and may eventually cause damage to otherwise good parts.

What happens if pinion depth is wrong?

Again, you’ll need to determine the proper spacing by using a pinion depth setting tool to ensure proper installation. Improper gear spacing will lead to wear and damage to your gear set. If this setting is not correct, it may cause overheating or damage to the gears.

How do you adjust a ring and pinion Assembly?

Assembly During the ring & pinion installation, there are four pr imary adjustments that will need to be made. 1. Pinion Depth ± The distance from the face of the pinion gear to the centerline of the ring gear. This is adjusted by adding or subtracting shims to the inner pinion bearing. 2.

How do you set the pinion depth on a Ford truck?

Setup With Pinion Depth Setting Tool Start by installing the pinion in the housing as per the pinion depth dimensions. This depth is obtained by using pinion shims behind the inner pinion bearing or behind the inner pinion race or between the pinion support and the case (Ford 9” and GM 10.5”)

How to install a rear axle pinion bearing?

Place differential pinion bearing (new, or used if in good condition) over aligning disc and insert into rear axle pinion bearing cup of carrier. Place differential pinion bearing into bearing cap and assemble tool handle into screw and tighten to 2.2 Nm (20 lb-in). Pinion Rear Bearing Installation STEP 1:

How do you replace a pinion shaft on a Ford F150?

Press the new bearing on the new pinion shaft using the original shim. After replacing the pinion races, install the new pinion into the housing without a crush collar/preload shims and without the pinion seal. Use the old pinion nut to secure the yoke and tighten to obtain the factory specified preload.
