Can microwaves waves be polarized?

Yes. All forms of electromagnetic radiation (e.g. microwaves, light, x-rays) can be polarized.

What is microwave polarization?

The polarisation of waves refers to the direction in which the electric field of the wave is travelling. If the travelling waves all have their electric field oscillating up and down they are said to be vertically polarised. The microwave transmitter and receiver transmit and detect vertically polarised microwaves.

Is used to change the polarization of microwaves?

In order to change linearly polarized light to circularly polarized, a quarter-wave retarder is used.

What is microwave transmitter?

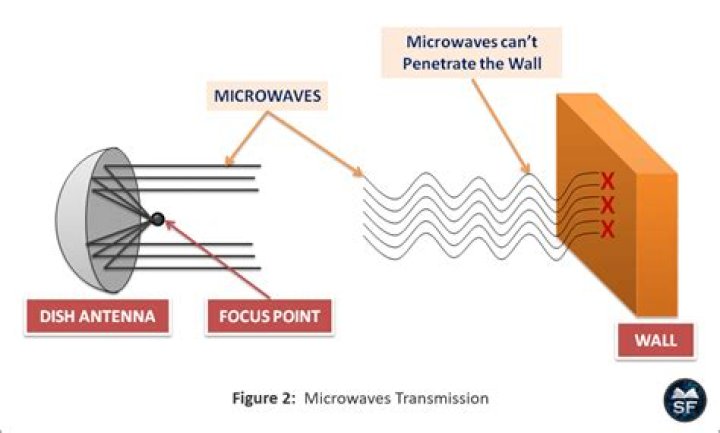

In microwave radio relay, a microwave transmitter and directional antenna transmits a narrow beam of microwaves carrying many channels of information on a line of sight path to another relay station where it is received by a directional antenna and receiver, forming a fixed radio connection between the two points.

How you could test whether the microwaves leaving the transmitter were Plane Polarised?

You can easily show that these microwaves are polarised when they are emitted. This can be done just by putting a receiver in front of the transmitter, and then rotating either around the direction between them. When they are ‘crossed’ (at right angles) the signal reception drops to zero.

Can ultrasonic waves be polarized?

Ultrasonic waves are high-frequency sound waves. These waves are longitudinal in nature, hence it cannot be polarized. Only transverse waves can be polarised.

Can ultraviolet waves be polarized?

All the electromagnetic waves are transverse waves and they can be polarized. The only longitudinal wave in the option is ultrasonic wave which is a sound wave. So the ultrasonic waves don’t get polarized.

What is vertical and horizontal polarization?

Vertical polarization refers to the oscillation of an antenna’s electrical field on the vertical plane, whereas horizontal polarization refers to the oscillation on the horizontal plane. Slant polarization refers to an electrical field that oscillates at a 45-degree angle to a reference plane.

Who invented the waveguide?

George C. Southworth
The waveguide was developed independently between 1932 and 1936 by George C. Southworth at Bell Telephone Laboratories and Wilmer L. Barrow at the Massachusetts Institute of Technology, who worked without knowledge of one another.

What process made polarization possible?

Polarized light can be produced by passing unpolarized light through a polarizer, which allows waves of only one polarization to pass through.

How do you determine polarization of a wave?

Consider a wave travelling in the +z-direction. Its polarization will then be traced out in the xy-plane, and appears as shown in the figure below. tanε = OB OA ,−45◦ ≤ ε ≤ 45◦ . Axial ratio is a measure of how close the polarization is to circular; if AR = 1, the polarization traced out is a circle.

How does a microwave polarizing filter work?

(2) Microwave polarizing filter: One way to produce a given polarization is to get rid of the undesired components of the waves by arranging to have them do work and use up their energy. A grid of wires serves that purpose as they absorb microwaves with E along the length of the wire.

What is polarization purity and why is it important?

Polarization purity is the ratio of the desired polarization component to the undesired component. 40 dB is a good figure of merit. Light waves are of course electromagnetic waves, but at much higher frequency than microwaves.

What determines the direction of polarization of a microwave waveguide?

(1) The microwave waveguide/horn is oriented with it’s narrow dimension vertical, and that means the E-field is vertical and determines the direction of polarization. This is easily verified with the light bulb detector—the lightbulb glows brightly when the dipole is oriented vertically and goes out completely when oriented horizontally.

What are the properties of a 10 cm microwave?

Microwave Properties. 10 cm microwaves are used for the demonstration of travelling and standing waves, reflection, interference, refraction, diffraction, absorption, polarization, tunneling, and waveguides. The following is a sequence of experiments that can accompany a standard lecture on electromagnetic waves.
